GUI::Network::Packet Class Reference

Represents a packet for the custom binary UDP protocol. More...

#include <ProtocolHandler.hpp>

Inheritance diagram for GUI::Network::Packet:

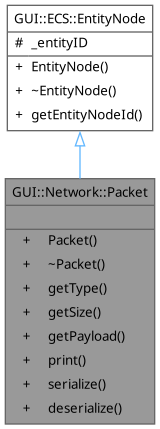

Collaboration diagram for GUI::Network::Packet:

Public Member Functions
	Packet (MessageType type=MessageType::P_ERROR, const std::vector< uint8_t > &payload={})
	Constructs a Packet with a specified message type and payload.
	~Packet ()=default
	Destructor for the Packet class.
MessageType	getType () const
	Gets the message type of the packet.
uint16_t	getSize () const
	Gets the size of the packet's payload.
const std::vector< uint8_t > &	getPayload () const
	Gets the payload of the packet.
const std::string	print () const
	Prints a string representation of the packet's contents, for debugging purposes.
Public Member Functions inherited from GUI::ECS::EntityNode
	EntityNode (const size_t entityId=0)
virtual	~EntityNode ()=default
virtual size_t	getEntityNodeId () const

Static Public Member Functions
static std::vector< uint8_t >	serialize (const Packet &packet)
	Serializes a Packet object into a vector of bytes suitable for network transmission.
static Packet	deserialize (const std::vector< uint8_t > &data)
	Deserializes a packet from a vector of bytes received over the network.

Additional Inherited Members
Protected Attributes inherited from GUI::ECS::EntityNode
size_t	_entityID

Detailed Description

Represents a packet for the custom binary UDP protocol.

The Packet class defines a network packet with a message type, payload, and size. It offers functions to serialize and deserialize packets to and from a byte array for easy transmission over UDP. The supported message types include connection, disconnection, movement, shooting, entity spawning, updates, and error messages.

Definition at line 45 of file ProtocolHandler.hpp.

Constructor & Destructor Documentation

Packet()

GUI::Network::Packet::Packet	(	MessageType	type = MessageType::P_ERROR,
		const std::vector< uint8_t > &	payload = {} )

Constructs a Packet with a specified message type and payload.

Parameters

type	The type of message for the packet (default is ERROR).
payload	The data to be included in the packet as the payload (optional, defaults to empty).

Definition at line 15 of file ProtocolHandler.cpp.

~Packet()

GUI::Network::Packet::~Packet ( )

default

Destructor for the Packet class.

The destructor is defined as default, as there is no dynamic memory allocation needing special cleanup.

Member Function Documentation

deserialize()

GUI::Network::Packet GUI::Network::Packet::deserialize ( const std::vector< uint8_t > & data )

static

Deserializes a packet from a vector of bytes received over the network.

This method reconstructs a Packet object from its binary representation, extracting the type, size, and payload from the byte array.

Parameters

data	The vector of bytes representing a serialized packet.

Returns

A Packet object constructed from the deserialized data.

Exceptions

std::runtime_error

If the packet is invalid (e.g., incorrect size).

Definition at line 46 of file ProtocolHandler.cpp.

getPayload()

const std::vector< uint8_t > & GUI::Network::Packet::getPayload

(

)

const

Gets the payload of the packet.

Returns

A reference to the vector of bytes representing the packet's payload.

Definition at line 30 of file ProtocolHandler.cpp.

getSize()

uint16_t GUI::Network::Packet::getSize

(

)

const

Gets the size of the packet's payload.

Returns

The size of the payload in bytes.

Definition at line 25 of file ProtocolHandler.cpp.

getType()

GUI::Network::MessageType GUI::Network::Packet::getType

(

)

const

Gets the message type of the packet.

Returns

The type of message this packet represents (e.g., CONNECT, DISCONNECT, etc.).

Definition at line 20 of file ProtocolHandler.cpp.

print()

const std::string GUI::Network::Packet::print

(

)

const

Prints a string representation of the packet's contents, for debugging purposes.

The printed output includes the packet's type, size, and a list of the payload bytes.

Returns

A string containing a human-readable description of the packet.

Definition at line 62 of file ProtocolHandler.cpp.

serialize()

std::vector< uint8_t > GUI::Network::Packet::serialize ( const Packet & packet )

static

Serializes a Packet object into a vector of bytes suitable for network transmission.

The serialized format includes:

• 1 byte for the message type.
• 2 bytes for the payload size (high byte, low byte).
• The payload itself (a sequence of bytes).

Parameters

packet

The packet to serialize.

Returns

A vector of bytes representing the serialized packet.

Definition at line 35 of file ProtocolHandler.cpp.

---

The documentation for this class was generated from the following files:

• gui/include/GUI/Network/ProtocolHandler.hpp
• gui/src/GUI/Network/ProtocolHandler.cpp
