Represents a rectangular component that can detect collisions and mouse interactions, such as hovering and clicking. More...

#include <Collision.hpp>

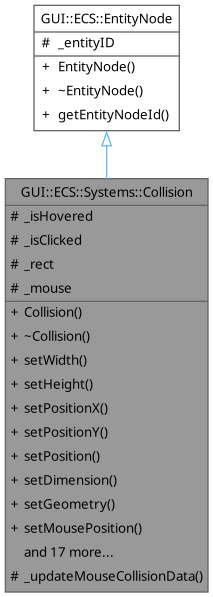

Inheritance diagram for GUI::ECS::Systems::Collision:

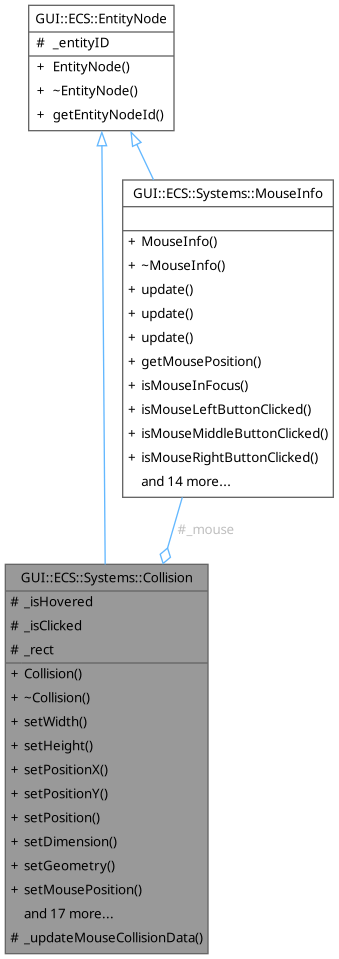

Collaboration diagram for GUI::ECS::Systems::Collision:

Public Member Functions
	Collision (const std::uint32_t entityId=0, const float width=0, const float height=0, const float positionX=0, const float positionY=0)
	Constructs a Collision with the specified dimensions and position.

	~Collision ()
	Default destructor.

void	setWidth (const float &width)
	Sets the width of the component and updates collision data.

void	setHeight (const float &height)
	Sets the height of the component and updates collision data.

void	setPositionX (const float &posX)
	Sets the X-coordinate of the component's position and updates collision data.

void	setPositionY (const float &posY)
	Sets the Y-coordinate of the component's position and updates collision data.

void	setPosition (const std::pair< float, float > &position)
	Set the position of the object.

void	setDimension (const std::pair< float, float > &dimension)
	Set the dimension of the object.

void	setGeometry (const Recoded::FloatRect &rect)
	Set the dimensions of the object using the FloatRect recode.

void	setMousePosition (const std::pair< int, int > &position)
	Updates the mouse position for collision checks.

void	update (const std::pair< int, int > &mousePosition)
	Update the mouse info object used for mouse tracking.

void	update (const GUI::ECS::Systems::MouseInfo &mouse)
	Update the mouse info object used for mouse tracking.

void	update (const GUI::ECS::Systems::Collision &copy)
	Update the info object used in the Collision class.

void	updateMouseInfo (const GUI::ECS::Systems::MouseInfo &mouse)
	Updates the mouse info object used for collision checks.

const bool	isClicked () const
	Checks if the component is clicked by the mouse.

const bool	isHovered () const
	Checks if the component is currently hovered by the mouse.

const bool	isColliding (const Collision &itemTwo) const
	Checks if this component is colliding with another Collision.

const float	getWidth () const
	Gets the width of the component.

const float	getHeight () const
	Gets the height of the component.

const float	getPositionX () const
	Gets the X-coordinate of the component's position.

const float	getPositionY () const
	Gets the Y-coordinate of the component's position.

const Recoded::FloatRect	getGeometry () const
	This is the function in charge of returning the coordinates in the form of an sf::FloatRect.

const std::pair< float, float >	getPosition () const
	Get the position of the item in the form of an sf::Vector2i.

const std::pair< float, float >	getDimension () const
	Get the dimension of the item in the form of an sf::Vector2i.

const GUI::ECS::Systems::MouseInfo	getMouseInfo () const
	This is the function in charge of returning the MouseInfo class instance.

const std::string	getInfo (const unsigned int indent=0) const
	This is a function meant for debugging purposes It will dump the current state of the variables upon call. It will dump them for itself and any of it's underlying classes.

Collision &	operator= (const GUI::ECS::Systems::Collision &copy)
	This is the overload in charge of allowing the user to update their variables using the = sign.

Public Member Functions inherited from GUI::ECS::EntityNode
	EntityNode (const size_t entityId=0)

virtual	~EntityNode ()=default

virtual size_t	getEntityNodeId () const

Protected Member Functions
void	_updateMouseCollisionData ()
	Updates the mouse collision data, setting hover and click states.

Protected Attributes
bool	_isHovered = false

bool	_isClicked = false

Recoded::FloatRect	_rect = { {0,0}, {0,0} }

GUI::ECS::Systems::MouseInfo	_mouse

Protected Attributes inherited from GUI::ECS::EntityNode
size_t	_entityID

Detailed Description

Represents a rectangular component that can detect collisions and mouse interactions, such as hovering and clicking.

Definition at line 39 of file Collision.hpp.

Constructor & Destructor Documentation

◆ Collision()

GUI::ECS::Systems::Collision::Collision	(	const std::uint32_t	entityId = 0,
		const float	width = 0,
		const float	height = 0,
		const float	positionX = 0,
		const float	positionY = 0 )

Constructs a Collision with the specified dimensions and position.

Parameters

width	Width of the component.
height	Height of the component.
positionX	X-coordinate of the component's position.
positionY	Y-coordinate of the component's position.

Definition at line 24 of file Collision.cpp.

◆ ~Collision()

GUI::ECS::Systems::Collision::~Collision ( )

Default destructor.

Definition at line 33 of file Collision.cpp.

Member Function Documentation

◆ _updateMouseCollisionData()

void GUI::ECS::Systems::Collision::_updateMouseCollisionData ( )

protected

Updates the mouse collision data, setting hover and click states.

Definition at line 329 of file Collision.cpp.

◆ getDimension()

const std::pair< float, float > GUI::ECS::Systems::Collision::getDimension ( ) const

Get the dimension of the item in the form of an sf::Vector2i.

Returns: std::pair<float, float> of the dimension of the element.

Definition at line 255 of file Collision.cpp.

◆ getGeometry()

const Recoded::FloatRect GUI::ECS::Systems::Collision::getGeometry ( ) const

This is the function in charge of returning the coordinates in the form of an sf::FloatRect.

Returns: sf::FloatRect instance of the coordinates.

Definition at line 235 of file Collision.cpp.

◆ getHeight()

const float GUI::ECS::Systems::Collision::getHeight ( ) const

Gets the height of the component.

Returns: Height of the component.

Definition at line 205 of file Collision.cpp.

◆ getInfo()

const std::string GUI::ECS::Systems::Collision::getInfo ( const unsigned int indent = 0 ) const

This is a function meant for debugging purposes It will dump the current state of the variables upon call. It will dump them for itself and any of it's underlying classes.

Parameters

indent The level to which the class should be indented in the dump.

Returns: const std::string The formatted output.

Definition at line 290 of file Collision.cpp.

◆ getMouseInfo()

const GUI::ECS::Systems::MouseInfo GUI::ECS::Systems::Collision::getMouseInfo ( ) const

This is the function in charge of returning the MouseInfo class instance.

Returns: GUI::ECS::Systems::MouseInfo The MouseInfo class.

Definition at line 265 of file Collision.cpp.

◆ getPosition()

const std::pair< float, float > GUI::ECS::Systems::Collision::getPosition ( ) const

Get the position of the item in the form of an sf::Vector2i.

Returns: std::pair<float, float> of the position of the element

Definition at line 245 of file Collision.cpp.

◆ getPositionX()

const float GUI::ECS::Systems::Collision::getPositionX ( ) const

Gets the X-coordinate of the component's position.

Returns: X-coordinate of the component's position.

Definition at line 215 of file Collision.cpp.

◆ getPositionY()

const float GUI::ECS::Systems::Collision::getPositionY ( ) const

Gets the Y-coordinate of the component's position.

Returns: Y-coordinate of the component's position.

Definition at line 225 of file Collision.cpp.

◆ getWidth()

const float GUI::ECS::Systems::Collision::getWidth ( ) const

Gets the width of the component.

Returns: Width of the component.

Definition at line 195 of file Collision.cpp.

◆ isClicked()

const bool GUI::ECS::Systems::Collision::isClicked ( ) const

Checks if the component is clicked by the mouse.

Returns: true if the component is clicked; otherwise, false.

Definition at line 175 of file Collision.cpp.

◆ isColliding()

const bool GUI::ECS::Systems::Collision::isColliding ( const Collision & itemTwo ) const

Checks if this component is colliding with another Collision.

Parameters

itemTwo The other Collision to check against.

Returns: true if the components are colliding; otherwise, false.

Definition at line 276 of file Collision.cpp.

◆ isHovered()

const bool GUI::ECS::Systems::Collision::isHovered ( ) const

Checks if the component is currently hovered by the mouse.

Returns: true if the component is hovered; otherwise, false.

Definition at line 185 of file Collision.cpp.

◆ operator=()

GUI::ECS::Systems::Collision & GUI::ECS::Systems::Collision::operator= ( const GUI::ECS::Systems::Collision & copy )

This is the overload in charge of allowing the user to update their variables using the = sign.

Parameters

copy

Returns: GUI::ECS::Systems::Collision&

Definition at line 318 of file Collision.cpp.

◆ setDimension()

void GUI::ECS::Systems::Collision::setDimension ( const std::pair< float, float > & dimension )

Set the dimension of the object.

Parameters

dimension an std::pair<float, float> of the of the object's dimension.

Definition at line 95 of file Collision.cpp.

◆ setGeometry()

void GUI::ECS::Systems::Collision::setGeometry ( const Recoded::FloatRect & rect )

Set the dimensions of the object using the FloatRect recode.

Parameters

rect	a Recoded::FloatRect rectangle instance of the object's dimension and position.

Definition at line 106 of file Collision.cpp.

◆ setHeight()

void GUI::ECS::Systems::Collision::setHeight ( const float & height )

Sets the height of the component and updates collision data.

Parameters

height New height of the component.

Definition at line 51 of file Collision.cpp.

◆ setMousePosition()

void GUI::ECS::Systems::Collision::setMousePosition ( const std::pair< int, int > & mousePosition )

Updates the mouse position for collision checks.

Parameters

mousePosition New mouse position as an std::pair<int, int> vector.

Definition at line 117 of file Collision.cpp.

◆ setPosition()

void GUI::ECS::Systems::Collision::setPosition ( const std::pair< float, float > & position )

Set the position of the object.

Parameters

position an std::pair<float, float> of the object's position.

Definition at line 84 of file Collision.cpp.

◆ setPositionX()

void GUI::ECS::Systems::Collision::setPositionX ( const float & posX )

Sets the X-coordinate of the component's position and updates collision data.

Parameters

posX	New X-coordinate of the component's position.

Definition at line 62 of file Collision.cpp.

◆ setPositionY()

void GUI::ECS::Systems::Collision::setPositionY ( const float & posY )

Sets the Y-coordinate of the component's position and updates collision data.

Parameters

posY	New Y-coordinate of the component's position.

Definition at line 73 of file Collision.cpp.

◆ setWidth()

void GUI::ECS::Systems::Collision::setWidth ( const float & width )

Sets the width of the component and updates collision data.

Parameters

width New width of the component.

Definition at line 40 of file Collision.cpp.

◆ update() [1/3]

void GUI::ECS::Systems::Collision::update ( const GUI::ECS::Systems::Collision & copy )

Update the info object used in the Collision class.

Parameters

copy

Definition at line 139 of file Collision.cpp.

◆ update() [2/3]

void GUI::ECS::Systems::Collision::update ( const GUI::ECS::Systems::MouseInfo & mouse )

Update the mouse info object used for mouse tracking.

Parameters

copy

Definition at line 152 of file Collision.cpp.

◆ update() [3/3]

void GUI::ECS::Systems::Collision::update ( const std::pair< int, int > & mouse )

Update the mouse info object used for mouse tracking.

Parameters

copy

Definition at line 129 of file Collision.cpp.

◆ updateMouseInfo()

void GUI::ECS::Systems::Collision::updateMouseInfo ( const GUI::ECS::Systems::MouseInfo & mouse )

Updates the mouse info object used for collision checks.

Parameters

mouse Mouse information object.

Definition at line 164 of file Collision.cpp.

Field Documentation

◆ _isClicked

bool GUI::ECS::Systems::Collision::_isClicked = false

protected

Definition at line 96 of file Collision.hpp.

◆ _isHovered

bool GUI::ECS::Systems::Collision::_isHovered = false

protected

Definition at line 95 of file Collision.hpp.

◆ _mouse

GUI::ECS::Systems::MouseInfo GUI::ECS::Systems::Collision::_mouse

protected

Definition at line 98 of file Collision.hpp.

◆ _rect

Recoded::FloatRect GUI::ECS::Systems::Collision::_rect = { {0,0}, {0,0} }

protected

Definition at line 97 of file Collision.hpp.

The documentation for this class was generated from the following files:

gui/include/GUI/ECS/Systems/Collision.hpp
gui/src/GUI/ECS/Systems/Collision.cpp

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ Collision()

◆ ~Collision()

Member Function Documentation

◆ _updateMouseCollisionData()

◆ getDimension()

◆ getGeometry()

◆ getHeight()

◆ getInfo()

◆ getMouseInfo()

◆ getPosition()

◆ getPositionX()

◆ getPositionY()

◆ getWidth()

◆ isClicked()

◆ isColliding()

◆ isHovered()

◆ operator=()

◆ setDimension()

◆ setGeometry()

◆ setHeight()

◆ setMousePosition()

◆ setPosition()

◆ setPositionX()

◆ setPositionY()

◆ setWidth()

◆ update() [1/3]

◆ update() [2/3]

◆ update() [3/3]

◆ updateMouseInfo()

Field Documentation

◆ _isClicked

◆ _isHovered

◆ _mouse

◆ _rect
