Manages a collection of components associated with entities in an ECS (Entity-Component-System) architecture. More...

#include <ComponentContainer.hpp>

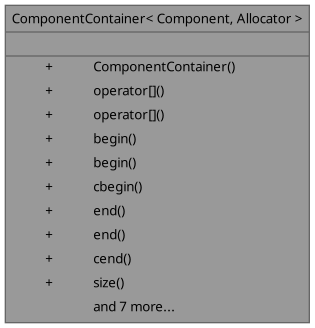

Collaboration diagram for ComponentContainer< Component, Allocator >:

Public Types
using	value_type = Component
	Type aliases for convenience.

using	optional_t = std::optional<Component>

using	sparse_storage_t = SparseArray<Component, Allocator>

using	dense_storage_t = DenseArray<Component, Allocator>

using	size_type = typename sparse_storage_t::size_type

using	reference = optional_t&

using	const_reference = const optional_t&

using	iterator = typename std::vector<optional_t, Allocator>::iterator

using	const_iterator = typename std::vector<optional_t, Allocator>::const_iterator

Public Member Functions
	ComponentContainer ()
	Default constructor.

reference	operator[] (size_t idx)
	Accesses the component at a given index.

const_reference	operator[] (size_t idx) const
	Accesses the component at a given index (const version).

iterator	begin ()
	Returns an iterator to the beginning of the component container.

const_iterator	begin () const
	Returns a const iterator to the beginning of the component container.

const_iterator	cbegin () const
	Returns a const iterator to the beginning of the component container.

iterator	end ()
	Returns an iterator to the end of the component container.

const_iterator	end () const
	Returns a const iterator to the end of the component container.

const_iterator	cend () const
	Returns a const iterator to the end of the component container.

size_type	size () const
	Returns the number of components stored in the array.

void	insert_at (size_type id, const Component &component)
	Inserts a component at a specific ID.

void	insert_at (size_type id, Component &&component)
	Inserts a component at a specific ID (move version).

template<typename... Params>
void	emplace_at (size_type id, Params &&... params)
	Constructs and inserts a component at a specific ID.

std::optional< Component >	get (const value_type &id) const
	Retrieves a component by its id.

void	erase (size_type id)
	Removes a component at a specific ID.

void	resize (size_type new_size)
	Resizes the container to a new size.

void	optimize_storage (size_type sparse_threshold, size_type dense_threshold)
	Optimizes the storage type based on thresholds for sparse and dense storage.

Detailed Description

template<typename Component, typename Allocator = std::allocator<Component>>
class ComponentContainer< Component, Allocator >

Manages a collection of components associated with entities in an ECS (Entity-Component-System) architecture.

The ComponentContainer class provides an interface for managing components, offering storage flexibility between sparse and dense arrays, and supports efficient insertion, retrieval, and optimization.

Template Parameters

Component	The type of component stored.
Allocator	The allocator type used for memory management (defaults to `std::allocator<Component>`).

Definition at line 24 of file ComponentContainer.hpp.

Member Typedef Documentation

◆ const_iterator

template<typename Component , typename Allocator = std::allocator<Component>>

using ComponentContainer< Component, Allocator >::const_iterator = typename std::vector<optional_t, Allocator>::const_iterator

Const iterator type.

Definition at line 36 of file ComponentContainer.hpp.

◆ const_reference

template<typename Component , typename Allocator = std::allocator<Component>>

using ComponentContainer< Component, Allocator >::const_reference = const optional_t&

Const reference to a component.

Definition at line 34 of file ComponentContainer.hpp.

◆ dense_storage_t

template<typename Component , typename Allocator = std::allocator<Component>>

using ComponentContainer< Component, Allocator >::dense_storage_t = DenseArray<Component, Allocator>

Dense storage type.

Definition at line 30 of file ComponentContainer.hpp.

◆ iterator

template<typename Component , typename Allocator = std::allocator<Component>>

using ComponentContainer< Component, Allocator >::iterator = typename std::vector<optional_t, Allocator>::iterator

Iterator type.

Definition at line 35 of file ComponentContainer.hpp.

◆ optional_t

template<typename Component , typename Allocator = std::allocator<Component>>

using ComponentContainer< Component, Allocator >::optional_t = std::optional<Component>

Optional type for components.

Definition at line 28 of file ComponentContainer.hpp.

◆ reference

template<typename Component , typename Allocator = std::allocator<Component>>

using ComponentContainer< Component, Allocator >::reference = optional_t&

Reference to a component.

Definition at line 33 of file ComponentContainer.hpp.

◆ size_type

template<typename Component , typename Allocator = std::allocator<Component>>

using ComponentContainer< Component, Allocator >::size_type = typename sparse_storage_t::size_type

Size type.

Definition at line 31 of file ComponentContainer.hpp.

◆ sparse_storage_t

template<typename Component , typename Allocator = std::allocator<Component>>

using ComponentContainer< Component, Allocator >::sparse_storage_t = SparseArray<Component, Allocator>

Sparse storage type.

Definition at line 29 of file ComponentContainer.hpp.

◆ value_type

template<typename Component , typename Allocator = std::allocator<Component>>

using ComponentContainer< Component, Allocator >::value_type = Component

Type aliases for convenience.

The type of component stored.

Definition at line 27 of file ComponentContainer.hpp.

Constructor & Destructor Documentation

◆ ComponentContainer()

template<typename Component , typename Allocator = std::allocator<Component>>

ComponentContainer< Component, Allocator >::ComponentContainer ( )

inline

Default constructor.

Definition at line 41 of file ComponentContainer.hpp.

Member Function Documentation

◆ begin() [1/2]

template<typename Component , typename Allocator = std::allocator<Component>>

iterator ComponentContainer< Component, Allocator >::begin ( )

inline

Returns an iterator to the beginning of the component container.

Returns: An iterator to the first component.

Definition at line 68 of file ComponentContainer.hpp.

◆ begin() [2/2]

template<typename Component , typename Allocator = std::allocator<Component>>

const_iterator ComponentContainer< Component, Allocator >::begin ( ) const

inline

Returns a const iterator to the beginning of the component container.

Returns: A const iterator to the first component.

Definition at line 83 of file ComponentContainer.hpp.

◆ cbegin()

template<typename Component , typename Allocator = std::allocator<Component>>

const_iterator ComponentContainer< Component, Allocator >::cbegin ( ) const

inline

Returns a const iterator to the beginning of the component container.

Returns: A const iterator to the first component.

Definition at line 98 of file ComponentContainer.hpp.

◆ cend()

template<typename Component , typename Allocator = std::allocator<Component>>

const_iterator ComponentContainer< Component, Allocator >::cend ( ) const

inline

Returns a const iterator to the end of the component container.

Returns: A const iterator to one past the last component.

Definition at line 143 of file ComponentContainer.hpp.

◆ emplace_at()

template<typename Component , typename Allocator = std::allocator<Component>>

template<typename... Params>

void ComponentContainer< Component, Allocator >::emplace_at	(	size_type	id,
		Params &&...	params )

inline

Constructs and inserts a component at a specific ID.

Template Parameters

Params The types of the parameters for the component constructor.

Parameters

id	The ID where the component should be inserted.
params	The parameters for constructing the component.

Definition at line 208 of file ComponentContainer.hpp.

◆ end() [1/2]

template<typename Component , typename Allocator = std::allocator<Component>>

iterator ComponentContainer< Component, Allocator >::end ( )

inline

Returns an iterator to the end of the component container.

Returns: An iterator to one past the last component.

Definition at line 113 of file ComponentContainer.hpp.

◆ end() [2/2]

template<typename Component , typename Allocator = std::allocator<Component>>

const_iterator ComponentContainer< Component, Allocator >::end ( ) const

inline

Returns a const iterator to the end of the component container.

Returns: A const iterator to one past the last component.

Definition at line 128 of file ComponentContainer.hpp.

◆ erase()

template<typename Component , typename Allocator = std::allocator<Component>>

void ComponentContainer< Component, Allocator >::erase ( size_type id )

inline

Removes a component at a specific ID.

Parameters

id	The ID of the component to erase.

Definition at line 249 of file ComponentContainer.hpp.

◆ get()

template<typename Component , typename Allocator = std::allocator<Component>>

std::optional< Component > ComponentContainer< Component, Allocator >::get ( const value_type & id ) const

inline

Retrieves a component by its id.

Parameters

id	The id value to search for.

Returns: An optional containing the component if found, or std::nullopt if not.

Definition at line 229 of file ComponentContainer.hpp.

◆ insert_at() [1/2]

template<typename Component , typename Allocator = std::allocator<Component>>

void ComponentContainer< Component, Allocator >::insert_at	(	size_type	id,
		Component &&	component )

inline

Inserts a component at a specific ID (move version).

Parameters

id	The ID where the component should be inserted.
component	The component to insert (moved).

Definition at line 190 of file ComponentContainer.hpp.

◆ insert_at() [2/2]

template<typename Component , typename Allocator = std::allocator<Component>>

void ComponentContainer< Component, Allocator >::insert_at	(	size_type	id,
		const Component &	component )

inline

Inserts a component at a specific ID.

Parameters

id	The ID where the component should be inserted.
component	The component to insert.

Definition at line 174 of file ComponentContainer.hpp.

◆ operator[]() [1/2]

template<typename Component , typename Allocator = std::allocator<Component>>

reference ComponentContainer< Component, Allocator >::operator[] ( size_t idx )

inline

Accesses the component at a given index.

Parameters

idx	The index of the component.

Returns: A reference to the component at the specified index.

Definition at line 49 of file ComponentContainer.hpp.

◆ operator[]() [2/2]

template<typename Component , typename Allocator = std::allocator<Component>>

const_reference ComponentContainer< Component, Allocator >::operator[] ( size_t idx ) const

inline

Accesses the component at a given index (const version).

Parameters

idx	The index of the component.

Returns: A const reference to the component at the specified index.

Definition at line 59 of file ComponentContainer.hpp.

◆ optimize_storage()

template<typename Component , typename Allocator = std::allocator<Component>>

void ComponentContainer< Component, Allocator >::optimize_storage	(	size_type	sparse_threshold,
		size_type	dense_threshold )

inline

Optimizes the storage type based on thresholds for sparse and dense storage.

Parameters

sparse_threshold	The threshold for switching to sparse storage.
dense_threshold	The threshold for switching to dense storage.

Definition at line 281 of file ComponentContainer.hpp.

◆ resize()

template<typename Component , typename Allocator = std::allocator<Component>>

void ComponentContainer< Component, Allocator >::resize ( size_type new_size )

inline

Resizes the container to a new size.

Parameters

new_size The new size of the container.

Definition at line 268 of file ComponentContainer.hpp.

◆ size()

template<typename Component , typename Allocator = std::allocator<Component>>

size_type ComponentContainer< Component, Allocator >::size ( ) const

inline

Returns the number of components stored in the array.

Returns: The number of components.

Definition at line 158 of file ComponentContainer.hpp.

The documentation for this class was generated from the following file:

game_source/ECS/include/ComponentContainer.hpp

Public Types

Public Member Functions

Detailed Description

Member Typedef Documentation

◆ const_iterator

◆ const_reference

◆ dense_storage_t

◆ iterator

◆ optional_t

◆ reference

◆ size_type

◆ sparse_storage_t

◆ value_type

Constructor & Destructor Documentation

◆ ComponentContainer()

Member Function Documentation

◆ begin() [1/2]

◆ begin() [2/2]

◆ cbegin()

◆ cend()

◆ emplace_at()

◆ end() [1/2]

◆ end() [2/2]

◆ erase()

◆ get()

◆ insert_at() [1/2]

◆ insert_at() [2/2]

◆ operator[]() [1/2]

◆ operator[]() [2/2]

◆ optimize_storage()

◆ resize()

◆ size()
