Represents an image component in the GUI ECS system. More...

#include <ImageComponent.hpp>

Inheritance diagram for GUI::ECS::Components::ImageComponent:

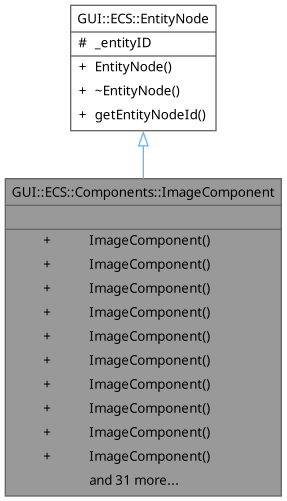

Collaboration diagram for GUI::ECS::Components::ImageComponent:

Public Member Functions
	ImageComponent ()
	Default constructor. Initializes the ImageComponent with default values.

	ImageComponent (const std::uint32_t entityId)
	Constructor with an entity ID.

	ImageComponent (const std::uint32_t entityId, const GUI::ECS::Components::TextureComponent &imageTexture, const std::string &name="", const std::string &application="")
	Constructor with an entity ID and an image path.

	ImageComponent (const std::uint32_t entityId, const GUI::ECS::Components::TextureComponent &imageTexture, std::pair< unsigned int, unsigned int > dimensions, const std::string &name="", const std::string &application="")
	Constructor with an entity ID, font path, text content, and font size.

	ImageComponent (const std::uint32_t entityId, const GUI::ECS::Components::TextureComponent &imageTexture, std::pair< unsigned int, unsigned int > dimensions, const GUI::ECS::Systems::Colour &normalColor, const GUI::ECS::Systems::Colour &hoverColor=GUI::ECS::Systems::Colour::White, const GUI::ECS::Systems::Colour &clickedColor=GUI::ECS::Systems::Colour::White, const std::string &name="", const std::string &application="")
	Constructor with detailed parameters.

	ImageComponent (const std::uint32_t entityId, const GUI::ECS::Components::TextureComponent &imageTexture, std::pair< unsigned int, unsigned int > dimensions, const std::pair< float, float > &position, const GUI::ECS::Systems::Colour &normalColor=GUI::ECS::Systems::Colour::White, const GUI::ECS::Systems::Colour &hoverColor=GUI::ECS::Systems::Colour::White, const GUI::ECS::Systems::Colour &clickedColor=GUI::ECS::Systems::Colour::White, const std::string &name="", const std::string &application="")
	Constructor with full parameter specification.

	ImageComponent (const std::uint32_t entityId, const std::string &imagePath, const std::string &name="", const std::string &application="")
	Constructor with an entity ID and an image path.

	ImageComponent (const std::uint32_t entityId, const std::string &imagePath, std::pair< unsigned int, unsigned int > dimensions, const std::string &name="", const std::string &application="")
	Constructor with an entity ID, font path, text content, and font size.

	ImageComponent (const std::uint32_t entityId, const std::string &imagePath, std::pair< unsigned int, unsigned int > dimensions, const GUI::ECS::Systems::Colour &normalColor, const GUI::ECS::Systems::Colour &hoverColor=GUI::ECS::Systems::Colour::White, const GUI::ECS::Systems::Colour &clickedColor=GUI::ECS::Systems::Colour::White, const std::string &name="", const std::string &application="")
	Constructor with detailed parameters.

	ImageComponent (const std::uint32_t entityId, const std::string &imagePath, std::pair< unsigned int, unsigned int > dimensions, const std::pair< float, float > &position, const GUI::ECS::Systems::Colour &normalColor=GUI::ECS::Systems::Colour::White, const GUI::ECS::Systems::Colour &hoverColor=GUI::ECS::Systems::Colour::White, const GUI::ECS::Systems::Colour &clickedColor=GUI::ECS::Systems::Colour::White, const std::string &name="", const std::string &application="")
	Constructor with full parameter specification.

	~ImageComponent ()
	Destructor for ImageComponent.

void	setName (const std::string &name)
	Set the Name of the image.

void	setApplication (const std::string &application)
	Set the Application (the context) of the image.

void	setNormalColor (const GUI::ECS::Systems::Colour &color)
	Sets the normal color of the image.

void	setHoverColor (const GUI::ECS::Systems::Colour &color)
	Sets the hover color of the image.

void	setClickedColor (const GUI::ECS::Systems::Colour &color)
	Sets the clicked color of the image.

void	setImage (const GUI::ECS::Components::TextureComponent &image, const std::string &name="")
	Assigns a texture to the image component.

void	setImage (const std::string &path, const std::string &name="")
	Loads and assigns an image from a file path.

void	setDimension (const std::pair< float, float > &dimension)
	Sets the dimensions of the image.

void	setPosition (const std::pair< int, int > &position)
	Sets the position of the image.

void	setVisible (const bool visible)
	Set the visibility of the object using a boolean.

void	setLevelBackgroundCompatible (const bool levelBackground)
	Set the Level Background Compatible variable.

void	toggleVisibility ()
	Toggles the visibility of the image.

const bool	isVisible () const
	Get the visibility state of the Image.

const bool	isLevelBackgroundCompatible () const
	Know if the background can be used as a level bacground.

const std::string	getName () const
	Get the Name of the image.

const std::string	getApplication () const
	Get the Application of the image.

const GUI::ECS::Components::TextureComponent	getImage () const
	Retrieves the texture associated with the image.

const GUI::ECS::Systems::Colour	getNormalColor () const
	Retrieves the normal color of the image.

const GUI::ECS::Systems::Colour	getHoverColor () const
	Retrieves the hover color of the image.

const GUI::ECS::Systems::Colour	getClickedColor () const
	Retrieves the clicked color of the image.

const std::pair< float, float >	getDimension () const
	Get the Size of the text.

const std::pair< int, int >	getPosition () const
	Get the Position of the image.

const bool	getVisible () const
	Get the Visibility of the text.

const GUI::ECS::Systems::Collision	getCollision () const
	Get the Collision object.

const std::string	getInfo (const unsigned int indent=0) const
	This is a function meant for debugging purposes It will dump the current state of the variables upon call. It will dump them for itself and any of it's underlying classes.

const bool	getLevelBackgroundCompatibility () const
	Get the Level Background Compatibility object.

std::any	render () const
	Renders the image to the given window.

void	update (const GUI::ECS::Systems::MouseInfo &mouse)
	Updates the image based on mouse interactions.

void	update (const GUI::ECS::Components::ImageComponent &copy)
	Updates this ImageComponent with values from another instance.

GUI::ECS::Components::ImageComponent &	operator= (const GUI::ECS::Components::ImageComponent &copy)
	Assigns values from another ImageComponent.

Public Member Functions inherited from GUI::ECS::EntityNode
	EntityNode (const size_t entityId=0)

virtual	~EntityNode ()=default

virtual size_t	getEntityNodeId () const

Additional Inherited Members
Protected Attributes inherited from GUI::ECS::EntityNode
size_t	_entityID

Detailed Description

Represents an image component in the GUI ECS system.

This component manages textures, colors, dimensions, and positioning for rendering images within the ECS framework.

Definition at line 43 of file ImageComponent.hpp.

Constructor & Destructor Documentation

◆ ImageComponent() [1/10]

GUI::ECS::Components::ImageComponent::ImageComponent ( )

Default constructor. Initializes the ImageComponent with default values.

Definition at line 16 of file ImageComponent.cpp.

◆ ImageComponent() [2/10]

GUI::ECS::Components::ImageComponent::ImageComponent ( const std::uint32_t entityId )

Constructor with an entity ID.

Parameters

entityId The ID of the associated entity.

Definition at line 22 of file ImageComponent.cpp.

◆ ImageComponent() [3/10]

GUI::ECS::Components::ImageComponent::ImageComponent	(	const std::uint32_t	entityId,
		const GUI::ECS::Components::TextureComponent &	imageTexture,
		const std::string &	name = "",
		const std::string &	application = "" )

Constructor with an entity ID and an image path.

Parameters

entityId	The ID of the associated entity.
imageTexture	The texture for the image
name	The name of the image
application	The application (context) of the image

Definition at line 28 of file ImageComponent.cpp.

◆ ImageComponent() [4/10]

GUI::ECS::Components::ImageComponent::ImageComponent	(	const std::uint32_t	entityId,
		const GUI::ECS::Components::TextureComponent &	imageTexture,
		std::pair< unsigned int, unsigned int >	dimensions,
		const std::string &	name = "",
		const std::string &	application = "" )

Constructor with an entity ID, font path, text content, and font size.

Parameters

entityId	The ID of the entity this component is associated with.
imageTexture	The texture for the image
dimension	The dimension of the image.
name	The name of the image
application	The application (context) of the image

Definition at line 39 of file ImageComponent.cpp.

◆ ImageComponent() [5/10]

GUI::ECS::Components::ImageComponent::ImageComponent	(	const std::uint32_t	entityId,
		const GUI::ECS::Components::TextureComponent &	imageTexture,
		std::pair< unsigned int, unsigned int >	dimensions,
		const GUI::ECS::Systems::Colour &	normalColor,
		const GUI::ECS::Systems::Colour &	hoverColor = GUI::ECS::Systems::Colour::White,
		const GUI::ECS::Systems::Colour &	clickedColor = GUI::ECS::Systems::Colour::White,
		const std::string &	name = "",
		const std::string &	application = "" )

Constructor with detailed parameters.

Parameters

entityId	The ID of the entity this component is associated with.
imageTexture	The texture for the image
dimension	The dimension of the image.
normalColor	The normal color of the text.
hoverColor	The color of the text when hovered.
clickedColor	The color of the text when clicked.
name	The name of the image
application	The application (context) of the image

Definition at line 51 of file ImageComponent.cpp.

◆ ImageComponent() [6/10]

GUI::ECS::Components::ImageComponent::ImageComponent	(	const std::uint32_t	entityId,
		const GUI::ECS::Components::TextureComponent &	imageTexture,
		std::pair< unsigned int, unsigned int >	dimensions,
		const std::pair< float, float > &	position,
		const GUI::ECS::Systems::Colour &	normalColor = GUI::ECS::Systems::Colour::White,
		const GUI::ECS::Systems::Colour &	hoverColor = GUI::ECS::Systems::Colour::White,
		const GUI::ECS::Systems::Colour &	clickedColor = GUI::ECS::Systems::Colour::White,
		const std::string &	name = "",
		const std::string &	application = "" )

Constructor with full parameter specification.

Parameters

entityId	The ID of the entity this component is associated with.
imageTexture	The texture for the image
dimension	The dimension of the image.
position	The position of the text in 2D space.
normalColor	The normal color of the text.
hoverColor	The color of the text when hovered.
clickedColor	The color of the text when clicked.
name	The name of the image
application	The application (context) of the image

Definition at line 66 of file ImageComponent.cpp.

◆ ImageComponent() [7/10]

GUI::ECS::Components::ImageComponent::ImageComponent	(	const std::uint32_t	entityId,
		const std::string &	imagePath,
		const std::string &	name = "",
		const std::string &	application = "" )

Constructor with an entity ID and an image path.

Parameters

entityId	The ID of the associated entity.
imagePath	The texture for the image
name	The name of the image
application	The application (context) of the image

Definition at line 82 of file ImageComponent.cpp.

◆ ImageComponent() [8/10]

GUI::ECS::Components::ImageComponent::ImageComponent	(	const std::uint32_t	entityId,
		const std::string &	imagePath,
		std::pair< unsigned int, unsigned int >	dimensions,
		const std::string &	name = "",
		const std::string &	application = "" )

Constructor with an entity ID, font path, text content, and font size.

Parameters

entityId	The ID of the entity this component is associated with.
imagePath	The texture for the image
dimension	The dimension of the image.
name	The name of the image
application	The application (context) of the image

Definition at line 93 of file ImageComponent.cpp.

◆ ImageComponent() [9/10]

GUI::ECS::Components::ImageComponent::ImageComponent	(	const std::uint32_t	entityId,
		const std::string &	imagePath,
		std::pair< unsigned int, unsigned int >	dimensions,
		const GUI::ECS::Systems::Colour &	normalColor,
		const GUI::ECS::Systems::Colour &	hoverColor = GUI::ECS::Systems::Colour::White,
		const GUI::ECS::Systems::Colour &	clickedColor = GUI::ECS::Systems::Colour::White,
		const std::string &	name = "",
		const std::string &	application = "" )

Constructor with detailed parameters.

Parameters

entityId	The ID of the entity this component is associated with.
imagePath	The texture for the image
dimension	The dimension of the image.
normalColor	The normal color of the text.
hoverColor	The color of the text when hovered.
clickedColor	The color of the text when clicked.
name	The name of the image
application	The application (context) of the image

Definition at line 105 of file ImageComponent.cpp.

◆ ImageComponent() [10/10]

GUI::ECS::Components::ImageComponent::ImageComponent	(	const std::uint32_t	entityId,
		const std::string &	imagePath,
		std::pair< unsigned int, unsigned int >	dimensions,
		const std::pair< float, float > &	position,
		const GUI::ECS::Systems::Colour &	normalColor = GUI::ECS::Systems::Colour::White,
		const GUI::ECS::Systems::Colour &	hoverColor = GUI::ECS::Systems::Colour::White,
		const GUI::ECS::Systems::Colour &	clickedColor = GUI::ECS::Systems::Colour::White,
		const std::string &	name = "",
		const std::string &	application = "" )

Constructor with full parameter specification.

Parameters

entityId	The ID of the entity this component is associated with.
imagePath	The texture for the image
dimension	The dimension of the image.
position	The position of the text in 2D space.
normalColor	The normal color of the text.
hoverColor	The color of the text when hovered.
clickedColor	The color of the text when clicked.
name	The name of the image
application	The application (context) of the image

Definition at line 120 of file ImageComponent.cpp.

◆ ~ImageComponent()

GUI::ECS::Components::ImageComponent::~ImageComponent ( )

Destructor for ImageComponent.

Definition at line 137 of file ImageComponent.cpp.

Member Function Documentation

◆ getApplication()

const std::string GUI::ECS::Components::ImageComponent::getApplication ( ) const

Get the Application of the image.

Returns: const std::string

Definition at line 241 of file ImageComponent.cpp.

◆ getClickedColor()

const GUI::ECS::Systems::Colour GUI::ECS::Components::ImageComponent::getClickedColor ( ) const

Retrieves the clicked color of the image.

Returns: The clicked color.

Definition at line 261 of file ImageComponent.cpp.

◆ getCollision()

const GUI::ECS::Systems::Collision GUI::ECS::Components::ImageComponent::getCollision ( ) const

Get the Collision object.

Returns: const GUI::ECS::Systems::Collision

Note: This is a sister function used for the update function.

Definition at line 281 of file ImageComponent.cpp.

◆ getDimension()

const std::pair< float, float > GUI::ECS::Components::ImageComponent::getDimension ( ) const

Get the Size of the text.

Returns: const std::pair<float, float>

Definition at line 266 of file ImageComponent.cpp.

◆ getHoverColor()

const GUI::ECS::Systems::Colour GUI::ECS::Components::ImageComponent::getHoverColor ( ) const

Retrieves the hover color of the image.

Returns: The hover color.

Definition at line 256 of file ImageComponent.cpp.

◆ getImage()

const GUI::ECS::Components::TextureComponent GUI::ECS::Components::ImageComponent::getImage ( ) const

Retrieves the texture associated with the image.

Returns: The current texture component.

Definition at line 246 of file ImageComponent.cpp.

◆ getInfo()

const std::string GUI::ECS::Components::ImageComponent::getInfo ( const unsigned int indent = 0 ) const

This is a function meant for debugging purposes It will dump the current state of the variables upon call. It will dump them for itself and any of it's underlying classes.

Parameters

indent The level to which the class should be indented in the dump.

Returns: const std::string The formatted output.

Definition at line 286 of file ImageComponent.cpp.

◆ getLevelBackgroundCompatibility()

const bool GUI::ECS::Components::ImageComponent::getLevelBackgroundCompatibility ( ) const

Get the Level Background Compatibility object.

Returns: true it can be used as a level background; false it cannot be used as a level background

Note: This function is a sub function for the update function, please call the function isLevelBackgroundCompatible for the same effect.

Definition at line 310 of file ImageComponent.cpp.

◆ getName()

const std::string GUI::ECS::Components::ImageComponent::getName ( ) const

Get the Name of the image.

Returns: const std::string

Definition at line 236 of file ImageComponent.cpp.

◆ getNormalColor()

const GUI::ECS::Systems::Colour GUI::ECS::Components::ImageComponent::getNormalColor ( ) const

Retrieves the normal color of the image.

Returns: The normal color.

Definition at line 251 of file ImageComponent.cpp.

◆ getPosition()

const std::pair< int, int > GUI::ECS::Components::ImageComponent::getPosition ( ) const

Get the Position of the image.

Returns: const std::pair<int, int>

Definition at line 271 of file ImageComponent.cpp.

◆ getVisible()

const bool GUI::ECS::Components::ImageComponent::getVisible ( ) const

Get the Visibility of the text.

Returns: true if visible; false if hidden

Definition at line 276 of file ImageComponent.cpp.

◆ isLevelBackgroundCompatible()

const bool GUI::ECS::Components::ImageComponent::isLevelBackgroundCompatible ( ) const

Know if the background can be used as a level bacground.

Returns: true it can be used as a level background; false it cannot be used as a level background

Definition at line 231 of file ImageComponent.cpp.

◆ isVisible()

const bool GUI::ECS::Components::ImageComponent::isVisible ( ) const

Get the visibility state of the Image.

Returns: true The image is visible; false The image is hidden

Definition at line 226 of file ImageComponent.cpp.

◆ operator=()

GUI::ECS::Components::ImageComponent & GUI::ECS::Components::ImageComponent::operator= ( const GUI::ECS::Components::ImageComponent & copy )

Assigns values from another ImageComponent.

Parameters

copy	The source ImageComponent.

Returns: A reference to the updated instance.

Definition at line 354 of file ImageComponent.cpp.

◆ render()

std::any GUI::ECS::Components::ImageComponent::render ( ) const

Renders the image to the given window.

Returns: std::optional<std::any> the internal component to render

Definition at line 315 of file ImageComponent.cpp.

◆ setApplication()

void GUI::ECS::Components::ImageComponent::setApplication ( const std::string & application )

Set the Application (the context) of the image.

Parameters

application

Definition at line 144 of file ImageComponent.cpp.

◆ setClickedColor()

void GUI::ECS::Components::ImageComponent::setClickedColor ( const GUI::ECS::Systems::Colour & color )

Sets the clicked color of the image.

Parameters

color The clicked color.

Definition at line 159 of file ImageComponent.cpp.

◆ setDimension()

void GUI::ECS::Components::ImageComponent::setDimension ( const std::pair< float, float > & dimension )

Sets the dimensions of the image.

Parameters

dimension The new dimensions as a pair (width, height).

Definition at line 187 of file ImageComponent.cpp.

◆ setHoverColor()

void GUI::ECS::Components::ImageComponent::setHoverColor ( const GUI::ECS::Systems::Colour & color )

Sets the hover color of the image.

Parameters

color The hover color.

Definition at line 154 of file ImageComponent.cpp.

◆ setImage() [1/2]

void GUI::ECS::Components::ImageComponent::setImage	(	const GUI::ECS::Components::TextureComponent &	image,
		const std::string &	name = "" )

Assigns a texture to the image component.

Parameters

image	The texture component.
name	An optional name for the image.

Definition at line 164 of file ImageComponent.cpp.

◆ setImage() [2/2]

void GUI::ECS::Components::ImageComponent::setImage	(	const std::string &	path,
		const std::string &	name = "" )

Loads and assigns an image from a file path.

Parameters

path	Path to the image file.
name	An optional name for the image.

Definition at line 176 of file ImageComponent.cpp.

◆ setLevelBackgroundCompatible()

void GUI::ECS::Components::ImageComponent::setLevelBackgroundCompatible ( const bool levelBackground )

Set the Level Background Compatible variable.

Parameters

levelBackground

Definition at line 212 of file ImageComponent.cpp.

◆ setName()

void GUI::ECS::Components::ImageComponent::setName ( const std::string & name )

Set the Name of the image.

Parameters

name

Definition at line 139 of file ImageComponent.cpp.

◆ setNormalColor()

void GUI::ECS::Components::ImageComponent::setNormalColor ( const GUI::ECS::Systems::Colour & color )

Sets the normal color of the image.

Parameters

color The normal color.

Definition at line 149 of file ImageComponent.cpp.

◆ setPosition()

void GUI::ECS::Components::ImageComponent::setPosition ( const std::pair< int, int > & position )

Sets the position of the image.

Parameters

position The new position as a pair (x, y).

Definition at line 197 of file ImageComponent.cpp.

◆ setVisible()

void GUI::ECS::Components::ImageComponent::setVisible ( const bool visible )

Set the visibility of the object using a boolean.

true : visible
false : hidden

Parameters

visible The boolean value

Definition at line 207 of file ImageComponent.cpp.

◆ toggleVisibility()

void GUI::ECS::Components::ImageComponent::toggleVisibility ( )

Toggles the visibility of the image.

Definition at line 217 of file ImageComponent.cpp.

◆ update() [1/2]

void GUI::ECS::Components::ImageComponent::update ( const GUI::ECS::Components::ImageComponent & copy )

Updates this ImageComponent with values from another instance.

Parameters

copy	The source ImageComponent.

Definition at line 330 of file ImageComponent.cpp.

◆ update() [2/2]

void GUI::ECS::Components::ImageComponent::update ( const GUI::ECS::Systems::MouseInfo & mouse )

Updates the image based on mouse interactions.

Parameters

mouse The mouse information.

Definition at line 324 of file ImageComponent.cpp.

The documentation for this class was generated from the following files:

gui/include/GUI/ECS/Components/ImageComponent.hpp
gui/src/GUI/ECS/Components/ImageComponent.cpp

Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ ImageComponent() [1/10]

◆ ImageComponent() [2/10]

◆ ImageComponent() [3/10]

◆ ImageComponent() [4/10]

◆ ImageComponent() [5/10]

◆ ImageComponent() [6/10]

◆ ImageComponent() [7/10]

◆ ImageComponent() [8/10]

◆ ImageComponent() [9/10]

◆ ImageComponent() [10/10]

◆ ~ImageComponent()

Member Function Documentation

◆ getApplication()

◆ getClickedColor()

◆ getCollision()

◆ getDimension()

◆ getHoverColor()

◆ getImage()

◆ getInfo()

◆ getLevelBackgroundCompatibility()

◆ getName()

◆ getNormalColor()

◆ getPosition()

◆ getVisible()

◆ isLevelBackgroundCompatible()

◆ isVisible()

◆ operator=()

◆ render()

◆ setApplication()

◆ setClickedColor()

◆ setDimension()

◆ setHoverColor()

◆ setImage() [1/2]

◆ setImage() [2/2]

◆ setLevelBackgroundCompatible()

◆ setName()

◆ setNormalColor()

◆ setPosition()

◆ setVisible()

◆ toggleVisibility()

◆ update() [1/2]

◆ update() [2/2]
