Manages shapes and their associated properties in the ECS framework. More...

#include <ShapeComponent.hpp>

Inheritance diagram for GUI::ECS::Components::ShapeComponent:

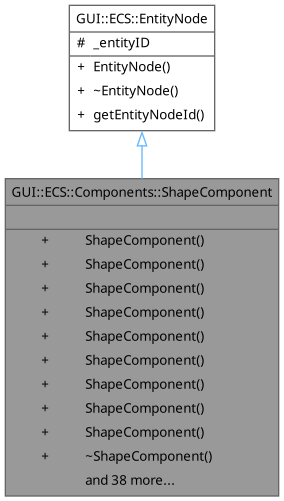

Collaboration diagram for GUI::ECS::Components::ShapeComponent:

Public Member Functions
	ShapeComponent (const std::uint32_t entityId=0)
	Default constructor.

	ShapeComponent (const std::size_t pointCount, const std::pair< float, float > &position={ 0, 0 }, const GUI::ECS::Systems::Colour &normalColour=GUI::ECS::Systems::Colour::AliceBlue, const GUI::ECS::Systems::Colour &hoverColour=GUI::ECS::Systems::Colour::White, const GUI::ECS::Systems::Colour &clickedColour=GUI::ECS::Systems::Colour::CornflowerBlue, const bool visible=true)
	Constructs a convex shape.

	ShapeComponent (const std::size_t pointCount, const float radius, const std::pair< float, float > &position={ 0, 0 }, const GUI::ECS::Systems::Colour &normalColour=GUI::ECS::Systems::Colour::AliceBlue, const GUI::ECS::Systems::Colour &hoverColour=GUI::ECS::Systems::Colour::White, const GUI::ECS::Systems::Colour &clickedColour=GUI::ECS::Systems::Colour::CornflowerBlue, const bool visible=true)
	Constructs a circle shape.

	ShapeComponent (const std::pair< float, float > &size, const std::pair< float, float > &position={ 0, 0 }, const GUI::ECS::Systems::Colour &normalColour=GUI::ECS::Systems::Colour::AliceBlue, const GUI::ECS::Systems::Colour &hoverColour=GUI::ECS::Systems::Colour::White, const GUI::ECS::Systems::Colour &clickedColour=GUI::ECS::Systems::Colour::CornflowerBlue, const bool visible=true)
	Constructs a rectangle shape.

	ShapeComponent (const Recoded::FloatRect &rect, const GUI::ECS::Systems::Colour &normalColour=GUI::ECS::Systems::Colour::AliceBlue, const GUI::ECS::Systems::Colour &hoverColour=GUI::ECS::Systems::Colour::White, const GUI::ECS::Systems::Colour &clickedColour=GUI::ECS::Systems::Colour::CornflowerBlue, const bool visible=true)
	Constructs a rectangle shape from a FloatRect.

	ShapeComponent (const std::uint32_t entityId, const std::size_t pointCount, const std::pair< float, float > &position={ 0, 0 }, const GUI::ECS::Systems::Colour &normalColour=GUI::ECS::Systems::Colour::AliceBlue, const GUI::ECS::Systems::Colour &hoverColour=GUI::ECS::Systems::Colour::White, const GUI::ECS::Systems::Colour &clickedColour=GUI::ECS::Systems::Colour::CornflowerBlue, const bool visible=true)
	Constructs a convex shape.

	ShapeComponent (const std::uint32_t entityId, const std::size_t pointCount, const float radius, const std::pair< float, float > &position={ 0, 0 }, const GUI::ECS::Systems::Colour &normalColour=GUI::ECS::Systems::Colour::AliceBlue, const GUI::ECS::Systems::Colour &hoverColour=GUI::ECS::Systems::Colour::White, const GUI::ECS::Systems::Colour &clickedColour=GUI::ECS::Systems::Colour::CornflowerBlue, const bool visible=true)
	Constructs a circle shape.

	ShapeComponent (const std::uint32_t entityId, const std::pair< float, float > &size, const std::pair< float, float > &position={ 0, 0 }, const GUI::ECS::Systems::Colour &normalColour=GUI::ECS::Systems::Colour::AliceBlue, const GUI::ECS::Systems::Colour &hoverColour=GUI::ECS::Systems::Colour::White, const GUI::ECS::Systems::Colour &clickedColour=GUI::ECS::Systems::Colour::CornflowerBlue, const bool visible=true)
	Constructs a rectangle shape.

	ShapeComponent (const std::uint32_t entityId, const Recoded::FloatRect &rect, const GUI::ECS::Systems::Colour &normalColour=GUI::ECS::Systems::Colour::AliceBlue, const GUI::ECS::Systems::Colour &hoverColour=GUI::ECS::Systems::Colour::White, const GUI::ECS::Systems::Colour &clickedColour=GUI::ECS::Systems::Colour::CornflowerBlue, const bool visible=true)
	Constructs a rectangle shape from a FloatRect.

	~ShapeComponent ()
	Destructor.

void	setHoverColor (const GUI::ECS::Systems::Colour &hoverColor)
	Sets the hover color for the shape.

void	setNormalColor (const GUI::ECS::Systems::Colour &normalColor)
	Sets the normal color for the shape.

void	setClickedColor (const GUI::ECS::Systems::Colour &clickedColor)
	Sets the clicked color for the shape.

void	setShape (const std::size_t pointCount)
	Create a convex shape.

void	setShape (const std::size_t pointCount, const float radius)
	Create a circle.

void	setShape (const std::pair< float, float > &size)
	Create a rectangle.

void	setShape (const Recoded::FloatRect &rect)
	Create a rectangle based on an Recoded::FloatRect.

void	setShape (const GUI::ECS::Systems::ActiveShape &type)
	Set the type of the object (this does not initialise the component)

void	setShape (const GUI::ECS::Systems::ActiveShape &type, const std::any &shape)
	Set the shape based on the type and an existing instance of a shape.

void	setShape (const std::pair< GUI::ECS::Systems::ActiveShape, std::any > &shape)
	Set the Shape object based on a pair made of the shape type and shape instance.

void	setVisible (const bool visible)
	Set the visible toggle informing the program if it should (or not) render the component.

void	setPosition (const std::pair< float, float > position)
	Set the position of the component.

void	setDimension (const std::pair< float, float > dimension)
	Set the Dimension object.

void	setCollision (const GUI::ECS::Systems::Collision &collision)
	Set the internal collision class using another Collision component.

void	setName (const std::string &name)
	Set the Name of the component.

void	setApplication (const std::string &application)
	Set the Application context of the component.

void	toggleVisibility ()
	Toggles the visibility of the shape.

const bool	isVisible () const
	Get the visibility status of the component.

const bool	isShapeInitialised () const
	Know if there is a shape initialised or not.

const GUI::ECS::Systems::ActiveShape	getShapeType () const
	Get the Shape Type shape, none is returned if none are initialised.

const std::string	getShapeTypeString () const
	Get the Shape Type shape, none is returned if none are initialised.

const std::pair< GUI::ECS::Systems::ActiveShape, std::any >	getActiveShape () const
	Get the Active Shape and it's type all contained in an std::pair.

const GUI::ECS::Systems::Colour	getHoverColor () const
	Get the Hover Color of the shape.

const GUI::ECS::Systems::Colour	getNormalColor () const
	Get the Normal Color of the shape.

const GUI::ECS::Systems::Colour	getClickedColor () const
	Get the Clicked Color shape.

const std::pair< float, float >	getPosition () const
	Get the Position of the shape.

const std::pair< float, float >	getDimension () const
	Get the Dimension of the shape.

const std::pair< GUI::ECS::Systems::ActiveShape, std::any >	getShape () const
	Get the Shape and it's type all packaged in an std::pair.

const GUI::ECS::Systems::Collision	getCollision () const
	Get the Collision Component of the object.

const std::string	getName () const
	Get the Name of the component.

const std::string	getApplication () const
	Get the Application context of the component.

const std::string	getInfo (const unsigned int indent=0) const
	This is a function meant for debugging purposes It will dump the current state of the variables upon call. It will dump them for itself and any of it's underlying classes.

const bool	getVisible () const
	Get the info about if the shape is visible or not.

void	update (const GUI::ECS::Systems::MouseInfo &mouse)
	Update the mouse information of the component (this is used for mouse collision calculations)

void	update (const ShapeComponent &copy)
	Update the ShapeComponent using another shape component.

void	clearShapes ()
	Remove all and any initialised shapes in the class, this will reset the type to NONE.

std::optional< std::pair< GUI::ECS::Systems::ActiveShape, std::any > >	render () const
	Get an optional std::pair of the object so that it can be displayed on screen.

ShapeComponent &	operator= (const ShapeComponent &copy)
	'=' operator in charge of allowing the user to seamlessly assing the content of one ShapeComponent to another.

Public Member Functions inherited from GUI::ECS::EntityNode
	EntityNode (const size_t entityId=0)

virtual	~EntityNode ()=default

virtual size_t	getEntityNodeId () const

Additional Inherited Members
Protected Attributes inherited from GUI::ECS::EntityNode
size_t	_entityID

Detailed Description

Manages shapes and their associated properties in the ECS framework.

Definition at line 47 of file ShapeComponent.hpp.

Constructor & Destructor Documentation

◆ ShapeComponent() [1/9]

GUI::ECS::Components::ShapeComponent::ShapeComponent ( const std::uint32_t entityId = 0 )

Default constructor.

Parameters

entityId The ID of the entity this component belongs to.

Definition at line 16 of file ShapeComponent.cpp.

◆ ShapeComponent() [2/9]

GUI::ECS::Components::ShapeComponent::ShapeComponent	(	const std::size_t	pointCount,
		const std::pair< float, float > &	position = { 0,0 },
		const GUI::ECS::Systems::Colour &	normalColour = GUI::ECS::Systems::Colour::AliceBlue,
		const GUI::ECS::Systems::Colour &	hoverColour = GUI::ECS::Systems::Colour::White,
		const GUI::ECS::Systems::Colour &	clickedColour = GUI::ECS::Systems::Colour::CornflowerBlue,
		const bool	visible = true )

Constructs a convex shape.

Parameters

pointCount	Number of points for the convex shape.
position	Position of the shape.
normalColour	Default color for the shape.
hoverColour	Color when hovered.
clickedColour	Color when clicked.
visible	Visibility status of the shape.

Definition at line 28 of file ShapeComponent.cpp.

◆ ShapeComponent() [3/9]

GUI::ECS::Components::ShapeComponent::ShapeComponent	(	const std::size_t	pointCount,
		const float	radius,
		const std::pair< float, float > &	position = { 0,0 },
		const GUI::ECS::Systems::Colour &	normalColour = GUI::ECS::Systems::Colour::AliceBlue,
		const GUI::ECS::Systems::Colour &	hoverColour = GUI::ECS::Systems::Colour::White,
		const GUI::ECS::Systems::Colour &	clickedColour = GUI::ECS::Systems::Colour::CornflowerBlue,
		const bool	visible = true )

Constructs a circle shape.

Parameters

pointCount	Number of points to render the circle.
radius	Radius of the circle.
position	Position of the shape.
normalColour	Default color for the shape.
hoverColour	Color when hovered.
clickedColour	Color when clicked.
visible	Visibility status of the shape.

Definition at line 44 of file ShapeComponent.cpp.

◆ ShapeComponent() [4/9]

GUI::ECS::Components::ShapeComponent::ShapeComponent	(	const std::pair< float, float > &	size,
		const std::pair< float, float > &	position = { 0,0 },
		const GUI::ECS::Systems::Colour &	normalColour = GUI::ECS::Systems::Colour::AliceBlue,
		const GUI::ECS::Systems::Colour &	hoverColour = GUI::ECS::Systems::Colour::White,
		const GUI::ECS::Systems::Colour &	clickedColour = GUI::ECS::Systems::Colour::CornflowerBlue,
		const bool	visible = true )

Constructs a rectangle shape.

Parameters

size	Dimensions of the rectangle.
position	Position of the shape.
normalColour	Default color for the shape.
hoverColour	Color when hovered.
clickedColour	Color when clicked.
visible	Visibility status of the shape.

Definition at line 59 of file ShapeComponent.cpp.

◆ ShapeComponent() [5/9]

GUI::ECS::Components::ShapeComponent::ShapeComponent	(	const Recoded::FloatRect &	rect,
		const GUI::ECS::Systems::Colour &	normalColour = GUI::ECS::Systems::Colour::AliceBlue,
		const GUI::ECS::Systems::Colour &	hoverColour = GUI::ECS::Systems::Colour::White,
		const GUI::ECS::Systems::Colour &	clickedColour = GUI::ECS::Systems::Colour::CornflowerBlue,
		const bool	visible = true )

Constructs a rectangle shape from a FloatRect.

Parameters

rect	Rectangle bounds.
normalColour	Default color for the shape.
hoverColour	Color when hovered.
clickedColour	Color when clicked.
visible	Visibility status of the shape.

Definition at line 74 of file ShapeComponent.cpp.

◆ ShapeComponent() [6/9]

GUI::ECS::Components::ShapeComponent::ShapeComponent	(	const std::uint32_t	entityId,
		const std::size_t	pointCount,
		const std::pair< float, float > &	position = { 0,0 },
		const GUI::ECS::Systems::Colour &	normalColour = GUI::ECS::Systems::Colour::AliceBlue,
		const GUI::ECS::Systems::Colour &	hoverColour = GUI::ECS::Systems::Colour::White,
		const GUI::ECS::Systems::Colour &	clickedColour = GUI::ECS::Systems::Colour::CornflowerBlue,
		const bool	visible = true )

Constructs a convex shape.

Parameters

entityId	The ID of the entity this component belongs to.
pointCount	Number of points for the convex shape.
position	Position of the shape.
normalColour	Default color for the shape.
hoverColour	Color when hovered.
clickedColour	Color when clicked.
visible	Visibility status of the shape.

Definition at line 88 of file ShapeComponent.cpp.

◆ ShapeComponent() [7/9]

GUI::ECS::Components::ShapeComponent::ShapeComponent	(	const std::uint32_t	entityId,
		const std::size_t	pointCount,
		const float	radius,
		const std::pair< float, float > &	position = { 0,0 },
		const GUI::ECS::Systems::Colour &	normalColour = GUI::ECS::Systems::Colour::AliceBlue,
		const GUI::ECS::Systems::Colour &	hoverColour = GUI::ECS::Systems::Colour::White,
		const GUI::ECS::Systems::Colour &	clickedColour = GUI::ECS::Systems::Colour::CornflowerBlue,
		const bool	visible = true )

Constructs a circle shape.

Parameters

entityId	The ID of the entity this component belongs to.
pointCount	Number of points to render the circle.
radius	Radius of the circle.
position	Position of the shape.
normalColour	Default color for the shape.
hoverColour	Color when hovered.
clickedColour	Color when clicked.
visible	Visibility status of the shape.

Definition at line 103 of file ShapeComponent.cpp.

◆ ShapeComponent() [8/9]

GUI::ECS::Components::ShapeComponent::ShapeComponent	(	const std::uint32_t	entityId,
		const std::pair< float, float > &	size,
		const std::pair< float, float > &	position = { 0,0 },
		const GUI::ECS::Systems::Colour &	normalColour = GUI::ECS::Systems::Colour::AliceBlue,
		const GUI::ECS::Systems::Colour &	hoverColour = GUI::ECS::Systems::Colour::White,
		const GUI::ECS::Systems::Colour &	clickedColour = GUI::ECS::Systems::Colour::CornflowerBlue,
		const bool	visible = true )

Constructs a rectangle shape.

Parameters

entityId	The ID of the entity this component belongs to.
size	Dimensions of the rectangle.
position	Position of the shape.
normalColour	Default color for the shape.
hoverColour	Color when hovered.
clickedColour	Color when clicked.
visible	Visibility status of the shape.

Definition at line 118 of file ShapeComponent.cpp.

◆ ShapeComponent() [9/9]

GUI::ECS::Components::ShapeComponent::ShapeComponent	(	const std::uint32_t	entityId,
		const Recoded::FloatRect &	rect,
		const GUI::ECS::Systems::Colour &	normalColour = GUI::ECS::Systems::Colour::AliceBlue,
		const GUI::ECS::Systems::Colour &	hoverColour = GUI::ECS::Systems::Colour::White,
		const GUI::ECS::Systems::Colour &	clickedColour = GUI::ECS::Systems::Colour::CornflowerBlue,
		const bool	visible = true )

Constructs a rectangle shape from a FloatRect.

Parameters

entityId	The ID of the entity this component belongs to.
rect	Rectangle bounds.
normalColour	Default color for the shape.
hoverColour	Color when hovered.
clickedColour	Color when clicked.
visible	Visibility status of the shape.

Definition at line 133 of file ShapeComponent.cpp.

◆ ~ShapeComponent()

GUI::ECS::Components::ShapeComponent::~ShapeComponent ( )

Destructor.

Definition at line 148 of file ShapeComponent.cpp.

Member Function Documentation

◆ clearShapes()

void GUI::ECS::Components::ShapeComponent::clearShapes ( )

Remove all and any initialised shapes in the class, this will reset the type to NONE.

Definition at line 456 of file ShapeComponent.cpp.

◆ getActiveShape()

const std::pair< GUI::ECS::Systems::ActiveShape, std::any > GUI::ECS::Components::ShapeComponent::getActiveShape ( ) const

Get the Active Shape and it's type all contained in an std::pair.

Returns: const std::pair<GUI::ECS::Systems::ActiveShape, std::any>

Definition at line 324 of file ShapeComponent.cpp.

◆ getApplication()

const std::string GUI::ECS::Components::ShapeComponent::getApplication ( ) const

Get the Application context of the component.

Returns: const std::string

Definition at line 403 of file ShapeComponent.cpp.

◆ getClickedColor()

const GUI::ECS::Systems::Colour GUI::ECS::Components::ShapeComponent::getClickedColor ( ) const

Get the Clicked Color shape.

Returns: const GUI::ECS::Systems::Colour

Definition at line 372 of file ShapeComponent.cpp.

◆ getCollision()

const GUI::ECS::Systems::Collision GUI::ECS::Components::ShapeComponent::getCollision ( ) const

Get the Collision Component of the object.

Returns: const Collision

Note: This is an internal function used by the update function.

Definition at line 392 of file ShapeComponent.cpp.

◆ getDimension()

const std::pair< float, float > GUI::ECS::Components::ShapeComponent::getDimension ( ) const

Get the Dimension of the shape.

Returns: const std::pair<float, float>

Definition at line 382 of file ShapeComponent.cpp.

◆ getHoverColor()

const GUI::ECS::Systems::Colour GUI::ECS::Components::ShapeComponent::getHoverColor ( ) const

Get the Hover Color of the shape.

Returns: const GUI::ECS::Systems::Colour

Definition at line 362 of file ShapeComponent.cpp.

◆ getInfo()

const std::string GUI::ECS::Components::ShapeComponent::getInfo ( const unsigned int indent = 0 ) const

This is a function meant for debugging purposes It will dump the current state of the variables upon call. It will dump them for itself and any of it's underlying classes.

Parameters

indent The level to which the class should be indented in the dump.

Returns: const std::string The formatted output.

Definition at line 408 of file ShapeComponent.cpp.

◆ getName()

const std::string GUI::ECS::Components::ShapeComponent::getName ( ) const

Get the Name of the component.

Returns: const std::string

Definition at line 398 of file ShapeComponent.cpp.

◆ getNormalColor()

const GUI::ECS::Systems::Colour GUI::ECS::Components::ShapeComponent::getNormalColor ( ) const

Get the Normal Color of the shape.

Returns: const GUI::ECS::Systems::Colour

Definition at line 367 of file ShapeComponent.cpp.

◆ getPosition()

const std::pair< float, float > GUI::ECS::Components::ShapeComponent::getPosition ( ) const

Get the Position of the shape.

Returns: const std::pair<float, float>

Definition at line 377 of file ShapeComponent.cpp.

◆ getShape()

const std::pair< GUI::ECS::Systems::ActiveShape, std::any > GUI::ECS::Components::ShapeComponent::getShape ( ) const

Get the Shape and it's type all packaged in an std::pair.

Returns: const std::pair<GUI::ECS::Systems::ActiveShape, std::any>

Definition at line 387 of file ShapeComponent.cpp.

◆ getShapeType()

const GUI::ECS::Systems::ActiveShape GUI::ECS::Components::ShapeComponent::getShapeType ( ) const

Get the Shape Type shape, none is returned if none are initialised.

Returns: const GUI::ECS::Systems::ActiveShape

Definition at line 314 of file ShapeComponent.cpp.

◆ getShapeTypeString()

const std::string GUI::ECS::Components::ShapeComponent::getShapeTypeString ( ) const

Get the Shape Type shape, none is returned if none are initialised.

Returns: const std::string the text version of the shape type.

Definition at line 319 of file ShapeComponent.cpp.

◆ getVisible()

const bool GUI::ECS::Components::ShapeComponent::getVisible ( ) const

Get the info about if the shape is visible or not.

Returns: true the object is visible; false the object is hidden

Note: This is an internal function used by the update function, please call isVisible to get this information.

Definition at line 429 of file ShapeComponent.cpp.

◆ isShapeInitialised()

const bool GUI::ECS::Components::ShapeComponent::isShapeInitialised ( ) const

Know if there is a shape initialised or not.

Returns: true the shape is initialised; false the shape is not initialised

Definition at line 303 of file ShapeComponent.cpp.

◆ isVisible()

const bool GUI::ECS::Components::ShapeComponent::isVisible ( ) const

Get the visibility status of the component.

Returns: true the component is visible; false the component is hidden

Definition at line 298 of file ShapeComponent.cpp.

◆ operator=()

GUI::ECS::Components::ShapeComponent & GUI::ECS::Components::ShapeComponent::operator= ( const ShapeComponent & copy )

'=' operator in charge of allowing the user to seamlessly assing the content of one ShapeComponent to another.

Parameters

copy

Returns: ShapeComponent&

Definition at line 506 of file ShapeComponent.cpp.

◆ render()

std::optional< std::pair< GUI::ECS::Systems::ActiveShape, std::any > > GUI::ECS::Components::ShapeComponent::render ( ) const

Get an optional std::pair of the object so that it can be displayed on screen.

Returns: std::optional<std::pair<GUI::ECS::Systems::ActiveShape, std::any>>

Note: This is an internal function meant to be called by the draw function from the Window component.

Definition at line 467 of file ShapeComponent.cpp.

◆ setApplication()

void GUI::ECS::Components::ShapeComponent::setApplication ( const std::string & application )

Set the Application context of the component.

Parameters

application

Definition at line 284 of file ShapeComponent.cpp.

◆ setClickedColor()

void GUI::ECS::Components::ShapeComponent::setClickedColor ( const GUI::ECS::Systems::Colour & clickedColor )

Sets the clicked color for the shape.

Parameters

clickedColor The new clicked color.

Definition at line 160 of file ShapeComponent.cpp.

◆ setCollision()

void GUI::ECS::Components::ShapeComponent::setCollision ( const GUI::ECS::Systems::Collision & collision )

Set the internal collision class using another Collision component.

Parameters

collision The collision component to query the data from.

Definition at line 270 of file ShapeComponent.cpp.

◆ setDimension()

void GUI::ECS::Components::ShapeComponent::setDimension ( const std::pair< float, float > dimension )

Set the Dimension object.

Parameters

dimension an std::pair<float, float> representing the dimensions of the component

Definition at line 265 of file ShapeComponent.cpp.

◆ setHoverColor()

void GUI::ECS::Components::ShapeComponent::setHoverColor ( const GUI::ECS::Systems::Colour & hoverColor )

Sets the hover color for the shape.

Parameters

hoverColor The new hover color.

Definition at line 150 of file ShapeComponent.cpp.

◆ setName()

void GUI::ECS::Components::ShapeComponent::setName ( const std::string & name )

Set the Name of the component.

Parameters

name

Definition at line 279 of file ShapeComponent.cpp.

◆ setNormalColor()

void GUI::ECS::Components::ShapeComponent::setNormalColor ( const GUI::ECS::Systems::Colour & normalColor )

Sets the normal color for the shape.

Parameters

normalColor The new normal color.

Definition at line 155 of file ShapeComponent.cpp.

◆ setPosition()

void GUI::ECS::Components::ShapeComponent::setPosition ( const std::pair< float, float > position )

Set the position of the component.

Parameters

position an std::pair<float, float> representing the position of the component

Definition at line 257 of file ShapeComponent.cpp.

◆ setShape() [1/7]

void GUI::ECS::Components::ShapeComponent::setShape ( const GUI::ECS::Systems::ActiveShape & type )

Set the type of the object (this does not initialise the component)

Parameters

type	The type of the object

Definition at line 218 of file ShapeComponent.cpp.

◆ setShape() [2/7]

void GUI::ECS::Components::ShapeComponent::setShape	(	const GUI::ECS::Systems::ActiveShape &	type,
		const std::any &	shape )

Set the shape based on the type and an existing instance of a shape.

Parameters

type	The type of shape
shape	The instance of the shape

Exceptions

CustomExceptions::InvalidShape if the provided shape was not found

Definition at line 224 of file ShapeComponent.cpp.

◆ setShape() [3/7]

void GUI::ECS::Components::ShapeComponent::setShape ( const Recoded::FloatRect & rect )

Create a rectangle based on an Recoded::FloatRect.

Parameters

rect	A rectangle component representing the dimensions of a rectangle.

Note: Any previous shapes will be cleared and a rectangle will take their place.

Definition at line 202 of file ShapeComponent.cpp.

◆ setShape() [4/7]

void GUI::ECS::Components::ShapeComponent::setShape ( const std::pair< float, float > & size )

Create a rectangle.

Parameters

size

Note: Any previous shapes will be cleared and a rectangle will take their place.

Definition at line 187 of file ShapeComponent.cpp.

◆ setShape() [5/7]

void GUI::ECS::Components::ShapeComponent::setShape ( const std::pair< GUI::ECS::Systems::ActiveShape, std::any > & shape )

Set the Shape object based on a pair made of the shape type and shape instance.

Parameters

shape std::pair<GUI::ECS::Systems::ActiveShape, std::any>

Definition at line 247 of file ShapeComponent.cpp.

◆ setShape() [6/7]

void GUI::ECS::Components::ShapeComponent::setShape ( const std::size_t pointCount )

Create a convex shape.

Parameters

pointCount Create a shape based on the number of points being inputted

Note: Any previous shapes will be cleared and a convex will take their place.

Definition at line 165 of file ShapeComponent.cpp.

◆ setShape() [7/7]

void GUI::ECS::Components::ShapeComponent::setShape	(	const std::size_t	pointCount,
		const float	radius )

Create a circle.

Parameters

pointCount	The number of points used to render the circle
radius	The radius of the circle

Note: Any previous shapes will be cleared and a circle will take their place.

Definition at line 176 of file ShapeComponent.cpp.

◆ setVisible()

void GUI::ECS::Components::ShapeComponent::setVisible ( const bool visible )

Set the visible toggle informing the program if it should (or not) render the component.

Parameters

visible

Definition at line 252 of file ShapeComponent.cpp.

◆ toggleVisibility()

void GUI::ECS::Components::ShapeComponent::toggleVisibility ( )

Toggles the visibility of the shape.

Definition at line 289 of file ShapeComponent.cpp.

◆ update() [1/2]

void GUI::ECS::Components::ShapeComponent::update ( const GUI::ECS::Systems::MouseInfo & mouse )

Update the mouse information of the component (this is used for mouse collision calculations)

Parameters

mouse

Definition at line 434 of file ShapeComponent.cpp.

◆ update() [2/2]

void GUI::ECS::Components::ShapeComponent::update ( const ShapeComponent & copy )

Update the ShapeComponent using another shape component.

Parameters

copy

Definition at line 442 of file ShapeComponent.cpp.

The documentation for this class was generated from the following files:

gui/include/GUI/ECS/Components/ShapeComponent.hpp
gui/src/GUI/ECS/Components/ShapeComponent.cpp

Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ ShapeComponent() [1/9]

◆ ShapeComponent() [2/9]

◆ ShapeComponent() [3/9]

◆ ShapeComponent() [4/9]

◆ ShapeComponent() [5/9]

◆ ShapeComponent() [6/9]

◆ ShapeComponent() [7/9]

◆ ShapeComponent() [8/9]

◆ ShapeComponent() [9/9]

◆ ~ShapeComponent()

Member Function Documentation

◆ clearShapes()

◆ getActiveShape()

◆ getApplication()

◆ getClickedColor()

◆ getCollision()

◆ getDimension()

◆ getHoverColor()

◆ getInfo()

◆ getName()

◆ getNormalColor()

◆ getPosition()

◆ getShape()

◆ getShapeType()

◆ getShapeTypeString()

◆ getVisible()

◆ isShapeInitialised()

◆ isVisible()

◆ operator=()

◆ render()

◆ setApplication()

◆ setClickedColor()

◆ setCollision()

◆ setDimension()

◆ setHoverColor()

◆ setName()

◆ setNormalColor()

◆ setPosition()

◆ setShape() [1/7]

◆ setShape() [2/7]

◆ setShape() [3/7]

◆ setShape() [4/7]

◆ setShape() [5/7]

◆ setShape() [6/7]

◆ setShape() [7/7]

◆ setVisible()

◆ toggleVisibility()

◆ update() [1/2]

◆ update() [2/2]
